Are the hexagonal lights dimmable?

Dimmable hexagonal lights are available for certain models. Standard non-dimmable lights nonetheless offer an impressive brightness of 120lm/w and CRI >90 for accurate color rendering. Plus, the non-flicker design ensures smooth, steady lighting, making them perfect for areas needing bright, reliable illumination. Ideal for any workspace or showroom!

How bright are the hexagonal lights

A standard 5 Hex Hexagonal Lights Grid produces an impressive 15,840 lumens, providing more than enough bright, even illumination for a 1-car garage. This ensures your space is not only well-lit but also enhances visibility and style, making it the perfect choice for your garage lighting upgrade.

What is included in the Hexagonal Lights Grid - 5 Hex kit?

This kit is designed to form a specific grid pattern using 5 interconnected hexagonal light panels. It includes all the necessary hexagonal light panels, connectors, a power supply appropriate for this size grid, and mounting hardware to install your 5-hex hexagonal light configuration. Please refer to the product specifications for the exact number of individual panels and connectors.

Can I connect this 5-hexagonal light kit to other hexagonal lights or expand it later?

Yes, the beauty of many hexagonal light systems is their modularity. You can typically connect this 'Hexagonal Lights Grid - 5 Hex' kit to additional hexagonal light panels from the same product line to create larger or different patterns. This allows you to expand your lighting design over time. Ensure any additional panels or kits are compatible with this system.

5-Hex LED light grid in Cool White 6500K

5-Hex LED light grid in cool white on a dark background

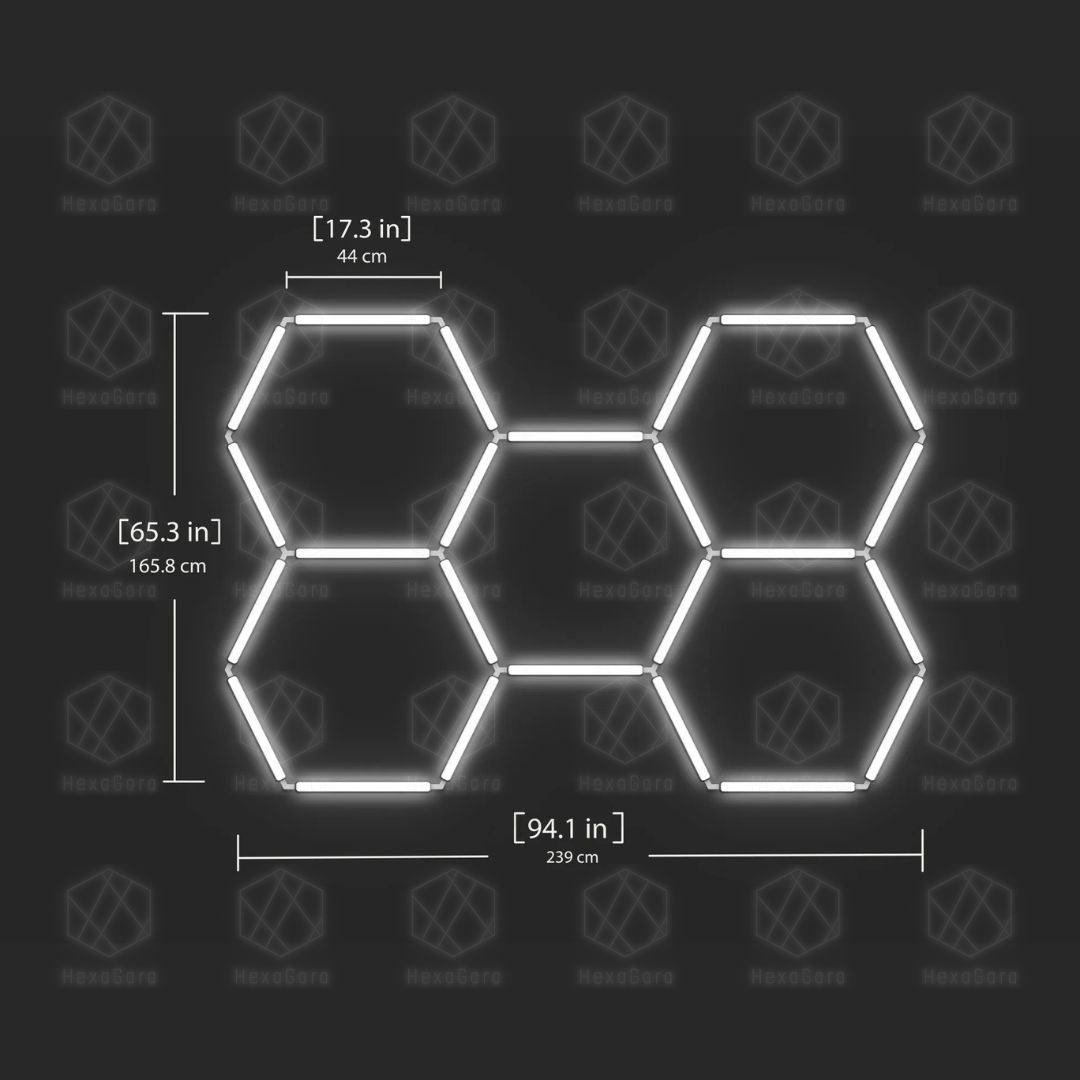

5-Hex LED light grid dimensions: 8 feet by 5 feet 5 inches

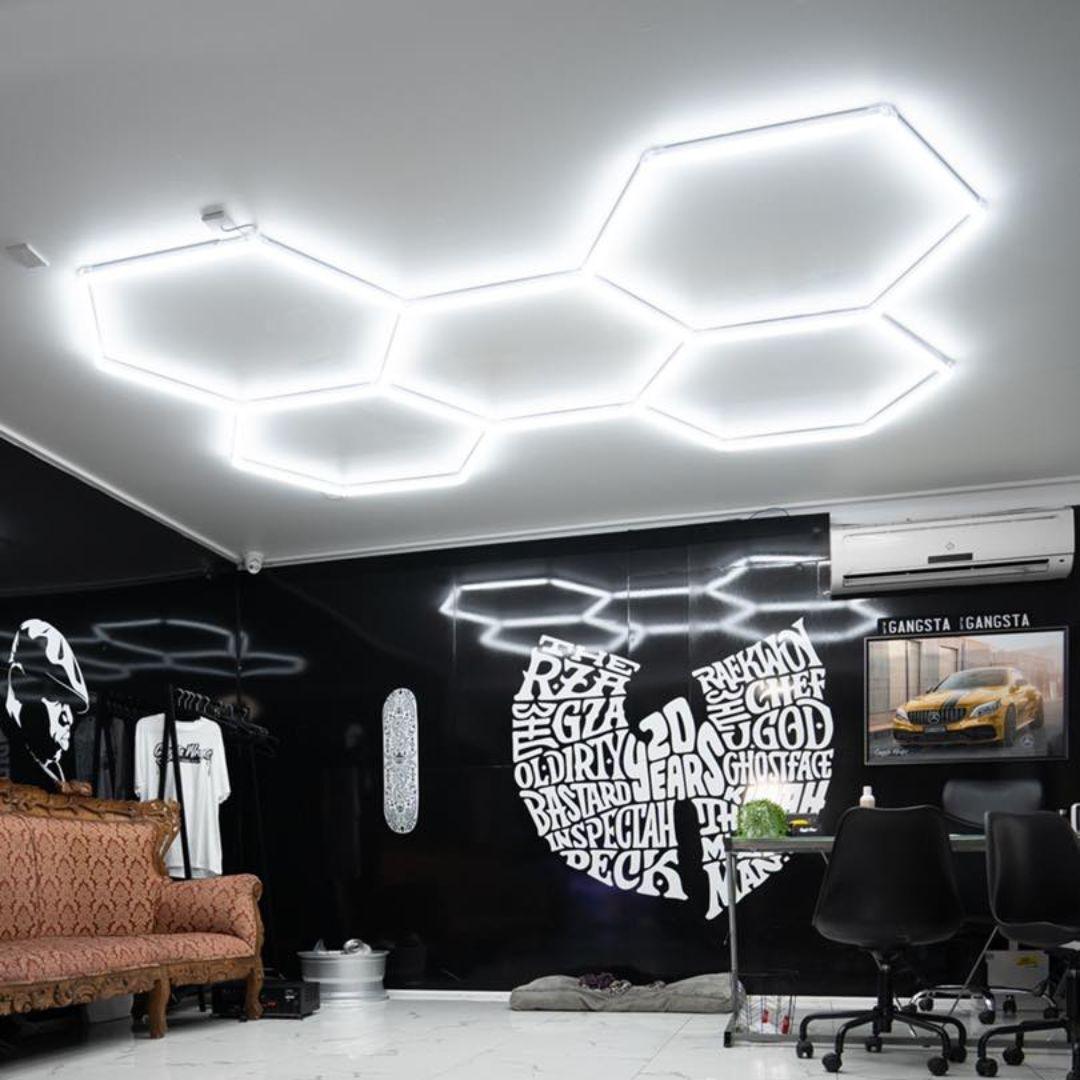

5-Hex LED light grid installed in a retail store

5-Hex LED light grid with TRIAC dimmable control

5-Hex LED light grid installed in an office

5-Hex LED light grid in Warm White 3000K

5-Hex LED light grid in Soft White 4000K

5-Hex LED light grid in Natural White 5000K

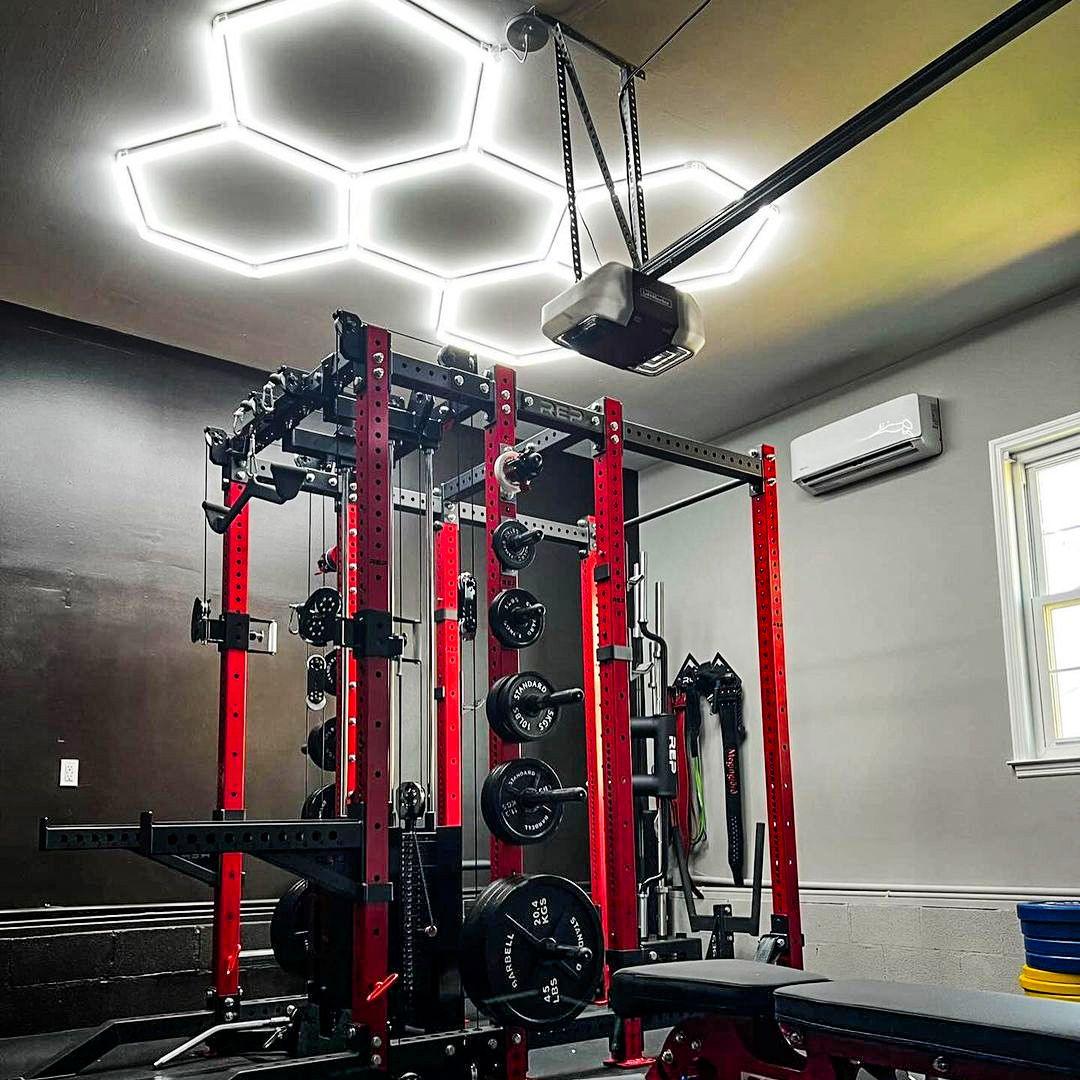

5-Hex LED Light Grid for Garages & Gyms – 8' x 5'5"

5-Hex LED Light Grid for Garages & Gyms – 8' x 5'5"

Q: How to assemble the hexagonal lights?

The lights can be assembled easily. Connect the light tubes using the provided Y (3-way) and V (2-way) connectors. Consider the location of your electrical outlet and position the grid accordingly for access to power. Finally, plug in the AC wires and connect them to the outlet to energize your grid.

$249.00 USD

$249.00 USD ~~$499.99 USD~~

Save 50%

Lighting Control: Standard (Non-Dimmable)

Standard (Non-Dimmable)

Dimmable (TRIAC)

Main Light Color Temperature: Cool white (6500k)

Cool white (6500k)

Natural White (5000k)

Soft White (4000k)

Warm white (3000k)

Ask a question

Size guide

Share

Request Spec Sheet

Estimated Delivery:Oct 01 - Oct 05
Free Shipping Included

5-Hex LED Light Grid for Garages & Gyms – 8' x 5'5"

What You See Is What You Get

Upgrade Your Lighting Today

Before

After

Brighten a garage, home gym, workshop, detailing bay, studio, or compact commercial space with a complete five-hexagon LED light grid. The modular tube-and-connector layout measures 8' × 5'5" (2.4 × 1.7 m) and gives broad, even illumination without overwhelming the room.

Choose Your Lighting Control

Lighting Control	Best For
Standard (Non-Dimmable)	Simple on/off operation at full light output. Compatible with 100–240V AC.
Dimmable (TRIAC)	Adjustable brightness for changing tasks and multipurpose spaces. Compatible with 100–277V AC; use a compatible TRIAC dimmer.

Select the Right Color Temperature

Warm White 3000K: softer, warmer light for lounges and multipurpose rooms
Soft White 4000K: balanced everyday illumination
Natural White 5000K: clear task lighting for garages, gyms, and workshops
Cool White 6500K: crisp, high-contrast light for detailing and commercial workspaces

Product Details

Five interconnected hexagons made from modular LED light tubes and connectors
Overall installed dimensions: 8' × 5'5" (2.4 × 1.7 m)
Surface-mountable on a suitable ceiling or feature wall
Choice of four fixed color temperatures
Standard and TRIAC-dimmable control options

Plan Your Installation

Measure the usable mounting area and account for garage doors, vehicle lifts, mirrors, fans, beams, vents, shelving, and electrical access. For a suspended installation, add the Ceiling Suspension Wire Kit, sold separately.

Select the lighting-control option and color temperature that match your space before adding the kit to your cart.

Power consumption: 144W

CCT: 6500K / 5000K / 4000K / 3000K (pre-selected)
CRI: >80
Light control: Standard (Non-Dimmable) or TRIAC Dimmable, depending on selected variant
Input voltage: 100-240V AC for Standard; 100-277V AC for TRIAC Dimmable
Luminous efficacy: 110-120 lm/W
IP54 water-resistance rating

Each lights set comes with AC-cable(s) for hard-wiring to power.
The lights grid can be mounted to ceiling or wall; screws and zip ties included.
Suspension kit is available for purchase separately.
Please read installation instructions carefully. It is recommended that you consult with a licensed electrician prior to install to ensure your electrical setup is sufficient.
Feel free to contact us at info@hexagara.com for any questions.

All orders go through a 24-48 hour processing time. Once the products are shipped, customers will receive a tracking number.
You can expect to receive your package within 7 to 12 business days (est.) once the order is placed.
We ship our products with reliable couriers such as UPS, DHL, Fedex to ensure smooth delivery.
See our shipping policy for more detail.

2 Year Warranty

UL, CSA, CE, SAA, ROHS

Installation as Easy as Plug & Play

Unbox

Carefully unbox your lights package. Inside, you'll find light tubes, connectors, AC cables, and mounting hardware. Lay out all components and inspect them for completeness and damage before starting installation.

Connect

Begin by aligning the light tubes according to the design layout. Use the provided connectors to securely join each tube together, ensuring a tight and stable fit. Consider the location of your electrical outlet and position the grid accordingly for access to power.

Mount

Use the provided mounting hardware to secure the connected light tubes to the designated surface. Position the lights as per your desired layout. Ensure all fixtures are properly aligned and securely fastened before proceeding to wiring.

Energize

Once the lights are securely mounted, connect the AC cable(s) to the power source. Double-check all connections to ensure they are safe and secure. Switch on the power to energize the lights and enjoy the bright, even illumination of your lighting system.

Guaranteed Brightness

Abundant Illumination

Each light tube can project lumen up to 120Lm/W, with color rending index of >80Ra. Bright, Zero flickering and Anti-Glare.

There's got to be one that fits you

Customizable Modular Lighting

Our Modular Design allows you to create unique and personalized lighting solutions. Choose from a variety of shapes, including hexagonal, rectangular, diamond, and geometric designs, to fit any size of space. Easily customize your lighting configuration to match your desired aesthetic.

GET Yours today

Modern Lighting Upgrade

Garages, Shops, Homes, Gyms, Studios, Offices, Businesses, Warehouses, give your space a modern and bright lighting upgrade!
